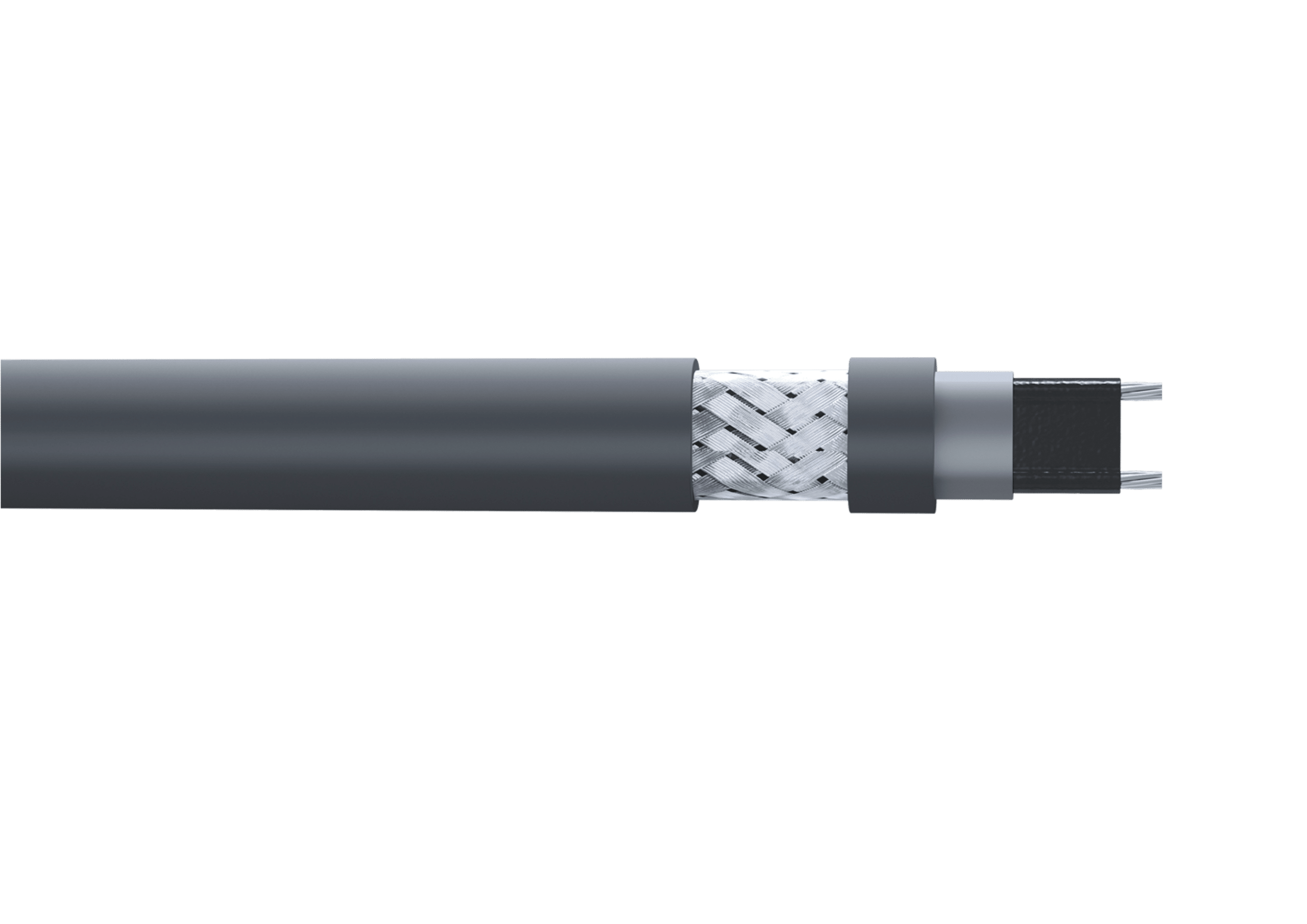

Heat Trace – CRGX
CRGX Heating Cables are designed for freeze protection of metal and plastic pipes and tanks, roof and gutter deicing, frost heave prevention and floor warming in building and construction market applications. CRG cables provide temperature maintenance to 150°F and withstand temperature exposure to 185°F.
CRGX is available from stock in 3,5,8, and 10watts/ft, 120 volt or 208-277 volt models. Self-regulating construction allows for maximum flexibility, cutting to length in the field, field termination, and overlap without burnout. Approved for ordinary area use with approved QMark/Berko connection and termination kits.
Additional Information
Max. Intermittent Exposure Temp.
- 185°F (85°C)
Max. Maintain or Continuous Exposure Temp.
- 150°F (65°C)
Supply Voltage
- 120V or 208-277V
Output Wattage
- 3, 5, 8, 10, 12* W/ft @50°F (10, 16, 26, 33, 39W/m @10°C)
(* 12W/ft only available in Supply Voltage 200 – 277V)
Bus wire
- 16 AWG
Min. Bending Radius
- 0.75″(19mm) @ 5°F (-15°C), 1.60″(40mm) @ -40°F (-40°C)
Min. Installation Temperature
- -58°F (-50°C)
Min. Start-up Temperature
- -40°F (-40°C)
Max. Circuit Breaker Size
- 50A
Outer Jacket Color
- Dark Grey
Heating Cable Dimensions (Nominal)
- CR: 0.493×0.241″ (12.5×6.1mm)
- CT: 0.461×0.217″ (11.7×5.5mm)
Heating Cable Weight
- CR: 0.243 lb/ft (0.110kg/m)
- CT: 0.228 lb/ft (0.103kg/m)
